Welcome to Nara E&C Inc.

- 2 STAGE

- Easy to carry : More Compact size and light weight than other pumps.
- Extremely Quiet : Precise machining eliminated noise and vibration level. well below those of competitors.
- Fast Pumping : Distinguished suction force is unrivaled.
- Protection function for gear part when moisture is in the part.
- Protection faculty by installed fan when pump is over load.
- Model Choices : Standard models are operated either 220V/380V AC input.
- 2 Stage.

MODEL	a	b	c	d	e	f	g	h	i	j	k	l
MOT-055	390mm	130	45	52	114	152	123	38	224	266	54	140
MOT-085	415mm	155	69	52	114	152	123	38	224	266	79	140

SPECIFICATION/MODEL		MOT-055	MOT-085

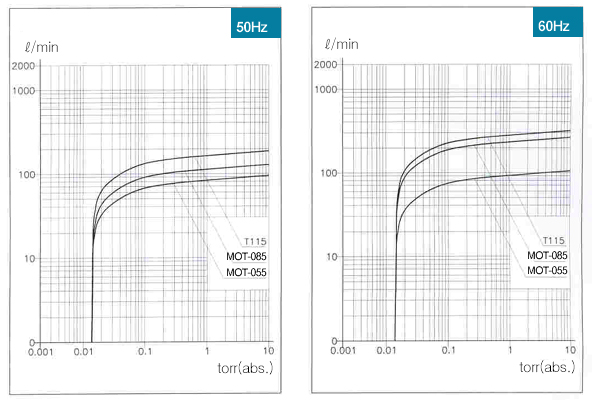

Pumping speed(ℓ/min)	50Hz	95	142
	60Hz	113	170
Ultimate pressure(Torr/micron)		15(1.5*10-2)
Motor version(1~, V)	50Hz	220
	60Hz
Nominal motor rating(1~, kW)		0.42
Nominal motor speed(min)	50Hz	1,430
	60Hz	1,725
Sound level(dB)		30	31
Operating temperature(Ambient, ℃)		40
Oil filling(ℓ)		0.72	0.80
Approx. weight(kgs)		14	15
