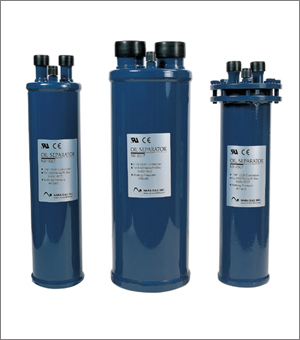

-Nara Series are
impingement screen type oil separators. They work by having the compressed
mass flow enter into a larger separator chamber witch lowers the velocity
and then the atomized oil droplets collect on the impingement screen
surface. As the oil droplets agglomerate into larger particles they
fall to the bottom of the separator oil reservoir. A complete replacement
parts list is available for the Nara Series at your local HVAC Wholesaler.
-
Nara Series are traditional impingement type oil separator, typically
for low temperature systems.
- Accessible to allow field repair or replacement of the impingement
screen.
- 500 psiG maximum working pressure.
- Many additional models available upon request. |
| ¢Á

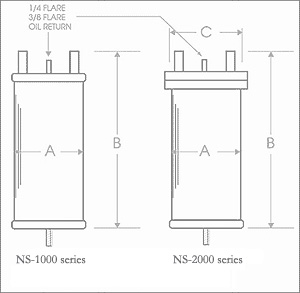

NS-1000, NS-2000 Series |
| MODEL
NO. |
SIZE
CONN.
(Orifice Diameter Size) |
DIMENSION
(inch) |
Capacity
in Tons of Refrigeration at EVAP. Temperature |
|
A |
B |
C |
R-12 (R-134a) |
R-22 |
R-502 |
-40 |
40 |
-40 |
40 |
-40 |
40 |
| NS-1002 |
1/4 |
4 |
8-1/4 |
|
1/2 |
3/4 |
3/4 |
1 |
3/4 |
1 |
| NS-1003 |
3/8 |
8-1/4 |
3/4 |
1 |
1 |
1-1/2 |
1 |
1-1/2 |
| NS-1004 |
1/2 |
10-1/4 |
1 |
1-1/2 |
1-1/2 |
2 |
1-1/2 |
2 |
| NS-1005 |
5/8 |
14-1/4 |
3 |
4 |
4-1/2 |
5-1/2 |
4-3/4 |
5-3/4 |
| NS-1007 |
7/8 |
17-3/4 |
4-1/2 |
5-1/2 |
7 |
8 |
7-1/2 |
8-1/2 |
| NS-1009 |
1-1/8 |
21 |
6 |
7-1/2 |
9 |
10-1/2 |
9-1/2 |
11-1/2 |
| NS-1011 |
1-3/8 |
21-1/4 |
7-1/2 |
10 |
11-1/2 |
13-1/2 |
12 |
14-1/2 |
| NS-2004 |
1/2 |
4 |
10-1/4 |
|
1 |
1-1/2 |
1-1/2 |
2 |
1-1/2 |
2 |
| NS-2005 |
5/8 |
14-1/4 |
3 |
4 |
4-1/2 |
5-1/2 |
4-3/4 |
5-3/4 |
| NS-2007 |
7/8 |
17-3/4 |
5-1/2 |
4-1/2 |
5-1/2 |
7 |
8 |
7-1/2 |
8-1/2 |
| NS-2009 |
1-1/8 |
21 |
|
6 |
7-1/2 |
9 |
10-1/2 |
9-1/2 |
11-1/2 |
| NS-2011 |
1-3/8 |
21-1/4 |
7-1/2 |
10 |
11-1/2 |
13-1/2 |
12 |
14-1/2 |
| ¢Á

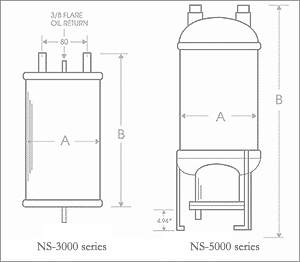

NS-3000, NS-5000 Series |
| MODEL
NO. |
SIZE CON
(inch) |
DIMENSION
(inch) |
Capacity
in Tons of Refrigeration at EVAP. Temperature |
|
A |
B |
C |
R-12 (R-134a) |
R-22 |
R-502 |
|
-40 |
40 |
-40 |
40 |
-40 |
40 |
| NS-3007 |
7/8 OSD |
6 |
11-1/8 |
|
6 |
8 |
9 |
10 |
9 |
10 |
| NS-3009 |
1-1/8 OSD |
15-3/8 |
8 |
10 |
11 |
12 |
12 |
12 |
| NS-3011 |
1-3/8 OSD |
15-5/8 |
9 |
12 |
13 |
14 |
15 |
15 |
| NS-3013 |
1-5/8 OSD |
18-5/8 |
11 |
14 |
16 |
16 |
20 |
20 |
| NS-3017 |
2-1/8 OSD |
19-1/8 |
17 |
22 |
25 |
30 |
30 |
30 |
| NS-5013 |
1-5/8 OSD |
8 |
21 |
|
12 |
15 |
20 |
24 |
22 |
25 |
| NS-5017 |
2-1/8 OSD |
21 |
20 |
25 |
30 |
35 |
35 |
40 |
| NS-5021 |
2-5/8 OSD |
10 |
21-1/2 |
30 |
40 |
50 |
65 |
60 |
70 |
| NS-5025 |
3-1/8 OSD |
12 |
25-3/4 |
50 |
60 |
75 |
90 |
80 |
100 |
| ¢Á

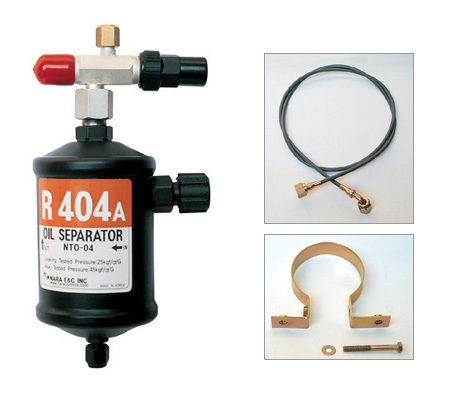

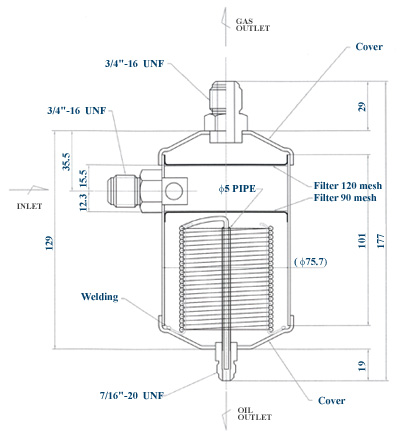

Transportation refrigerant unit - OIL SEPARATOR R404A , NTO-04
|
|
