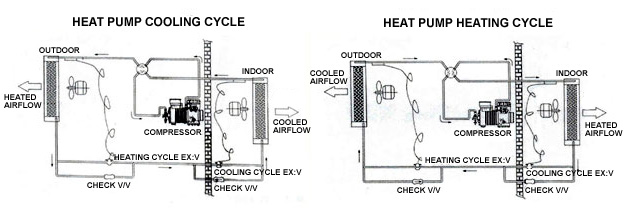

[ Specification of Air conditioning System ]                            Model   Classfication EJA-075 EJA-100 EJA-150 EJA-200 EJA-250 EJA-300 EJA-400 EJA-500 Designed capacity RT 7.5 10 15 20 25 30 40 50 TOTAL driving power kW 9 14 20 25 32 37 50 65 Air volume Air supply Standad Air volume CMH 4,125 5,500 8,250 11,000 13,750 16,500 22,000 27,500 CMM 69 92 138 184 230 275 367 458 Airflow span CMM 57~75 75~100 113~150 150~200 188~250 225~300 300~400 375~500 Static pressure ㎜Aq 60 75 75 75 85 85 85 85 Vantilation Standad Air volume CMH 3,712 4,950 7,425 9,900 12,375 14,850 19,800 24,750 CMM 62 83 124 165 206 248 330 413 Static pressure ㎜Aq 40 40 40 40 40 40 40 40 Capacity Cooling coil capacity kcal/hr 22,500 30,000 45,000 60,000 75,000 90,000 120,000 150,000 Heating capacity kcal/hr 6,750 9,000 13,500 18,000 22,500 27,000 36,000 45,000 Coil standard Front veiw area ㎡ 0.56 0.62 0.92 1.26 1.54 1.89 2.44 3.05 Step   16 18 22 30 30 30 32 40 Length ㎜ 900 900 1,100 1,100 1,350 1,600 2,000 2,000 Air blower Air supply AIR FOIL D.S. #2½ #2½ #3 #3 #3½ #4 #4½ #5 Driving power kW 2.2 3.7 5.5 5.5 7.5 7.5 11 15 Vantilation SIROCCO D.S. #2 #2½ #2½ #3 #3 #3½ #3½ #4 Driving power kW 1.1 2.2 2.2 3.7 3.7 5.5 7.5 11 FIlter P R E % AFI 80% MEDIUM % NBS 85% (Optional) Condensign unit Condenser Form   CROSS FIN COIL TYPE Blower   PROPELLER FAN Airvolume CMM 138 183 275 367 458 550 733 917 Driving power kW 0.2 0.4 0.8 0.8 1.2 1.2 1.6 2.2 Compressor Form   Hermetic Semi Hermetic Driving power kW 5.5 7.5 11 15 19 22 30 37 Starting method   Direct order input movement Pipe jointing Refrigerant Liquid pipe Ø 19.05 19.05 22.22 28.57 28.57 28.57 28.57 28.58 Gas pipe Ø 25.4 28.57 38.1 38.1 41.27 53.98 53.98 53.98 Water supply pipe Ø 32 32 32 32 32 32 32 32 Refrigerant charging volume kg 7.5 10.0 14.0 20 25 30 40 50 Oil charging volume lit 3.0 3.0 6.0 6.0 9.0 9.0 12.0 18.0                                 Model  Classfication EJA-600 EJA-700 EJA-800 EJA-900 EJA-1000 EJA-1200 EJA-1500 EJA-2000 Designed capacity RT 60 70 80 90 100 120 150 200 TOTAL driving power kW 73 88 101 108 129 144 174 235 Air volume Air supply Standard air volume CMH 33,000 38,500 44,000 49,500 55,000 66,000 82,500 110,000 CMM 550 642 733 825 917 1,100 1,375 1,833 Airflow span CMM 450~600 525~700 600~800 675~900 750 ~1,000 900 ~1,200 1,125 ~1,500 1,500 ~2,000 Static pressure ㎜Aq 85 85 85 85 85 90 90 90 Air vantilation Standard air volume CMH 29,700 34,650 39,600 44,550 49,500 59,400 74,250 99,000 CMM 495 578 660 743 825 990 1,238 1,650 Static pressure ㎜Aq 40 40 40 40 40 40 40 40 Capacity Cooling coil capacity kcal/hr 180,000 210,000 240,000 270,000 300,000 360,000 450,000 600,000 Heating capacity kcal/hr 54,000 63,000 72,000 81,000 9,000 108,000 135,000 180,000 Coil stadard Front veiw area ㎡ 1.84×2 2.01×2 2.46×2 2.63×2 3.03×2 3.63×2 4.42×2 3.05×4 Step   22×2 24×2 26×2 26×2 30×2 34×2 38×2 40×2 Length ㎜ 2,200 2,000 2,480 2,650 2,650 2,800 3,050 2,000×2 Blower Air supply AIR FOIL D.S. #5½ #5½ #5½ #6 #6½ #7 #7 #9 Driving power kW 19 22 22 22 30 30 37 45 Air vantilation SIROCCO D.S. #4½ #4½ #5 #5½ #5½ #6 #6 #7 Driving power kW 11 11 15 15 19 19 22 30 Filter P R E % AFI 80% MEDIUM % NBS 85% (Optional) Condensing unit Condeser Form   CROSS FIN COIL TYPE Blower   PROPELLER FAN Air volume CMM 1,100 1,283 1,464 1,647 1,830 2,196 2,745 3,660 Driving power kW 2.4 3.2 3.8 4.4 5.52 5.52. 7.2 9.6 Compressor Form   Semi Hermetic Driving power kW 45 52 60 67 75 90 112 150 Starting method   Direct order input movement Pipe joining Refrigerant Liquid pipe Ø 34.92 28.58×2 28.58×2 28.58×2 34.92×2 34.92×2 34.92×2 34.92×2 Gas pipe Ø 53.98 41.28×2 53.98×2 53.98×2 53.98×2 53.98×2 53.98×2 53.98×2 Water supplying pipe Ø 32 32 32 32 32 32 32 32 Refrigerant charging volume kg 60 70 80 90 100 120 150 200 Oil charging volume lit 18.0 24.0 24.0 36.0 36.0 36.0 48.0 52.0 [ Outdoor machinery line up for Building Multi ]   YNZP280E2 YNZP355E2 YNZP450E2 YNZP560E2 Capacity P280 P355 P450  P560 Cooling power(kw) 28.0 35.5 45.0 56.0 Heating power(kw) 33.5 42.5 53.0 67.0  Attachable Inner series  Z Series (P19~P39) H Series (P51~P68) [ Outdoor machinery line up for Store Multi/Package ] Store Multi Outdoor set YNMP140E2 YNMP180E2   Capacity P140 P180 Cooling power(kw) 14.0 18.0 Heating power(kw) 18.0 23.6 Attachable Inner series Z Series (P19~P39) H Series (P51~P68) Sort of Gas   13A 12A LPG 6A L1 ∧ 6B 6C 7C  ∨ L2 ∧ 5A 5AN 5B  ∨ 5C L3*  ∧ 4A 4B 4C  ∨ Mark N P A C D E G Building multi ○ ○ ○ ○ ○ ○ ○ Store Multi ○ ○ ○ ○ ○ ○ ○ Package ○ ○ ○ ○ ○ ○ ○ Pressure of gas supply  Gas  Pressure 13A 12A LPG 6A L1, L2, 5C, L3 Max G.Pres. 2.5 3.3 2.2 2.0 Stand.G.Pres. 2.0 2.8 1.5 1.0 Min.G.Pres. 1.0 2.0 0.7 0.5 Package (Outdoor machineries) YNPP140E2 YNPP280E2 YNPP560E2 Capacity P140 P280 P560 Cooling power(kw) 14.0 28.0 56.0 Heating power(kw) 18.0 33.5 67.0 Attachable Inner series Z Series (P75~P94)
