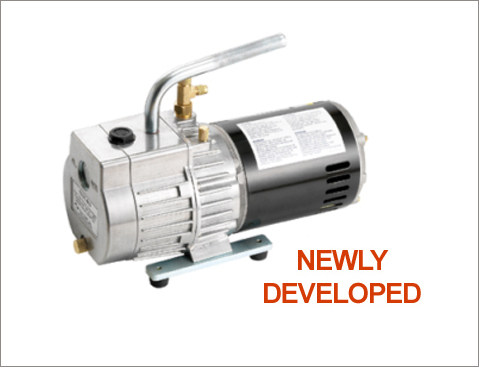

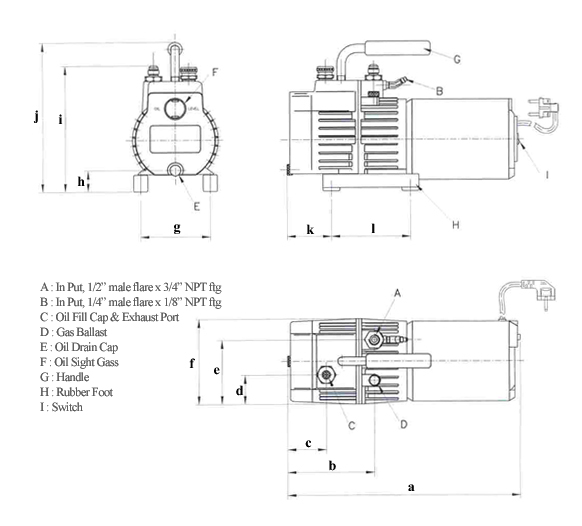

- 2 STAGE - Easy to carry : More Compact size and light weight than other pumps. - Extremely Quiet : Precise machining eliminated noise and vibration level. well below those of competitors. - Fast Pumping : Distinguished suction force is unrivaled. - Protection function for gear part when moisture is in the part. - Protection faculty by installed fan when pump is over load. - Model Choices : Standard models are operated either 220V/380V AC input. - 2 Stage. MODEL a b c d e f g h i j k l MOT-085 360mm 148 53 81 110 163 122 35 234 261 78 170 MOT-140 360mm 148 53 81 110 163 122 35 234 261 78 170 SPECIFICATION/MODEL MOT-085 MOT-140 Pumping speed(l/min) 50Hz 70 116 60Hz 85 140 Ultimate pressure(torr) GB Closed 1 X 10-3 GB Open 1 X10-2 Full load power(kw) 0.42 0.55 Approx. weight(kgs) 15  16
