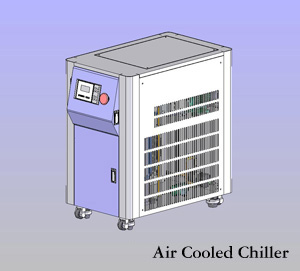

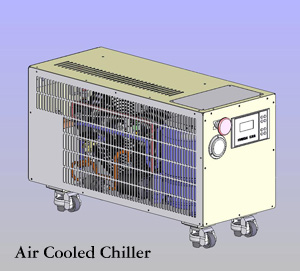

[ AIR COOLED CHILLER ]
| MODEL
|
HD
-01A |
HD
-02A |
HD
-03A |
HD
-05A |
HD
-075A |
HD
-010A |
HD
-015A |
HD
-020A |
HD
-030A |
HD
-040A |
| CLASSIFICATION
|
| OUTPUT
COMPRESSOR
Kw (HP) |
0.75
(1) |
1.5
(2) |
2.2
(3) |
3.75
(5) |
5.5
(7.5) |
7.5
(10) |
11.25
(15) |
15
(20) |
22.5
(30) |
30
(40) |
| CIRCULATION
PUMP
Kw(HP) |
0.25
(1/3) |
0.25
(1/3) |
0.4
(1/2) |
0.4
(1/2) |
0.75
(1) |
0.75
(1) |
1.5
(2) |
2.2
(3) |
2.2
(3) |
3.75
(5) |
| FLOW
RATE
(§¤/min) |
10/13
|
18/20
|
25/30
|
45/50
|
60/70
|
85/100
|
120/150
|
177/200
|
262/300
|
353/400
|
| TANK
CAPACITY (§¤) |
15
|
25
|
65
|
100
|
130
|
150
|
240
|
300
|
430
|
550
|
| COOLING
CAPACITY
(Kcal/HR) |
2600
/2900 |
5400
/5600 |
7500
/8000 |
13000
/14000 |
18000
/19800 |
25200
/28000 |
36000
/38000 |
50400
/56000 |
75600
/84000 |
100000
/112000 |
| VOLTAGE
(V) |
AC
1¢± 220V 50Hz, 60Hz AC
3¢± 220V, 380V, 440V 50Hz, 60Hz |
| TOTAL
WATTAGE
(Kw/H) |
1.1 |
1.85 |
2.8 |
4.35 |
6.65 |
8.65 |
14.25 |
18.4 |
26.95 |
37.5 |
| |
770 |
800 |
900 |
1000 |
1250 |
1430 |
1800 |
2100 |
2400 |
2500 |
| 500 |
700 |
750 |
800 |
870 |
850 |
1050 |
1000 |
1100 |
2000 |
| 900 |
1000 |
1150 |
1200 |
1300 |
1400 |
1600 |
1700 |
1850 |
2100 |
|
[ WATER COOLED CHILLER ]
| MODEL
|
HD
-01W |
HD
-02W |
HD
-03W |
HD
-05W |
HD
-07.5W |
HD
-010W |
HD
-015W |
HD
-020W |
HD
-030W |
HD
-040W |
| CLASSIFICATION
|
| OUTPUT
COMPRESSOR
Kw(HP) |
0.75
(1) |
1.5
(2) |
2.2
(3) |
3.75
(5) |
5.5
(7.5) |
7.5
(10) |
11.25
(15) |
15
(20) |
22.5
(30) |
30
(40) |
| CIRCULATION
PUMP
Kw(HP) |
0.25
(1/3) |
0.25
(1/3) |
0.4
(1/2) |
0.4
(1/2) |
0.75
(1) |
0.75
(1) |
1.5
(2) |
2.2
(3) |
2.2
(3) |
3.75
(5) |
| FLOW
RATE
(ℓ/min) |
10/13
|
18/20
|
25/30
|
45/50
|
60/70
|
85/100
|
120/150
|
177/200
|
262/300
|
353/400
|
| TANK
CAPACITY (ℓ) |
15
|
25
|
65
|
100
|
130
|
150
|
240
|
300
|
430
|
550
|
| COOLING
CAPACITY
(Kcal/HR) |
2800
/3000 |
5600
/6000 |
8000
/8800 |
14000
/15000 |
18800
/21000 |
28000
/30500 |
37600
/42000 |
55400
/61000 |
84100
/91000 |
116000
/120000 |
| WATER
FLOW RATE
(ℓ/min) |
13
|
26
|
40
|
70
|
100
|
130
|
190
|
250
|
380
|
510
|
| VOLTAGE
(V) |
AC
1∮ 220V 50Hz, 60Hz AC
3∮ 220V, 380V, 440V 50Hz, 60Hz |
| TOTAL
WATTAGE
(Kw/H) |
1 |
1.75 |
2.6 |
4.15 |
6.25 |
8.25 |
12.75 |
17.2 |
24.7 |
33.75 |
| |
770 |
850 |
850 |
1000 |
1450 |
1450 |
1450 |
1500 |
2100 |
2000 |
| 500 |
550 |
550 |
800 |
800 |
800 |
900 |
900 |
1100 |
1200 |
| 900 |
1000 |
1000 |
1140 |
1150 |
1150 |
1200 |
1350 |
1500 |
1600 |
|
|
